●产品特点 Features:
▶高功率密度High power density: 6KW/3U;
▶电流范围Current range: 100A/kW (150V), 70A/kW (600V), 40A/kW (1200V);
▶电压范围Voltage range: 150V, 600V, 1200V;
▶电流精度Current accuracy (0.05%+0.05% F.S.);
▶电压精度Voltage accuracy (0.025%+0.0225% F.S.);
▶采样速率高达Sampling rate up to 500kHz;
▶高达90%的转换效率;Up to 90% conversion efficiency;
▶支持主/从并机,功率可达600kW;Supporting master/slave parallel operation, power up to 600kW;
▶带载模式Loaded modeCC、CV、CR、CP、CV+CC、CR+CC、CP+CC;
▶RS232、LAN、GPIB、RS485、CAN通讯接口CAN communication interface;
▶具有OCP、OPP、LED模拟、负载效应、电池内阻、电池放电测试功能; OCP, OPP, LED simulation, load effect, battery internal resistance and battery discharge test;
▶短路模拟,功率瞬时放大2倍; Short circuit simulation, instantaneous power amplification 2 times;
▶SCPI与Modbus通讯协议; SCPI and Modbus communication protocol;

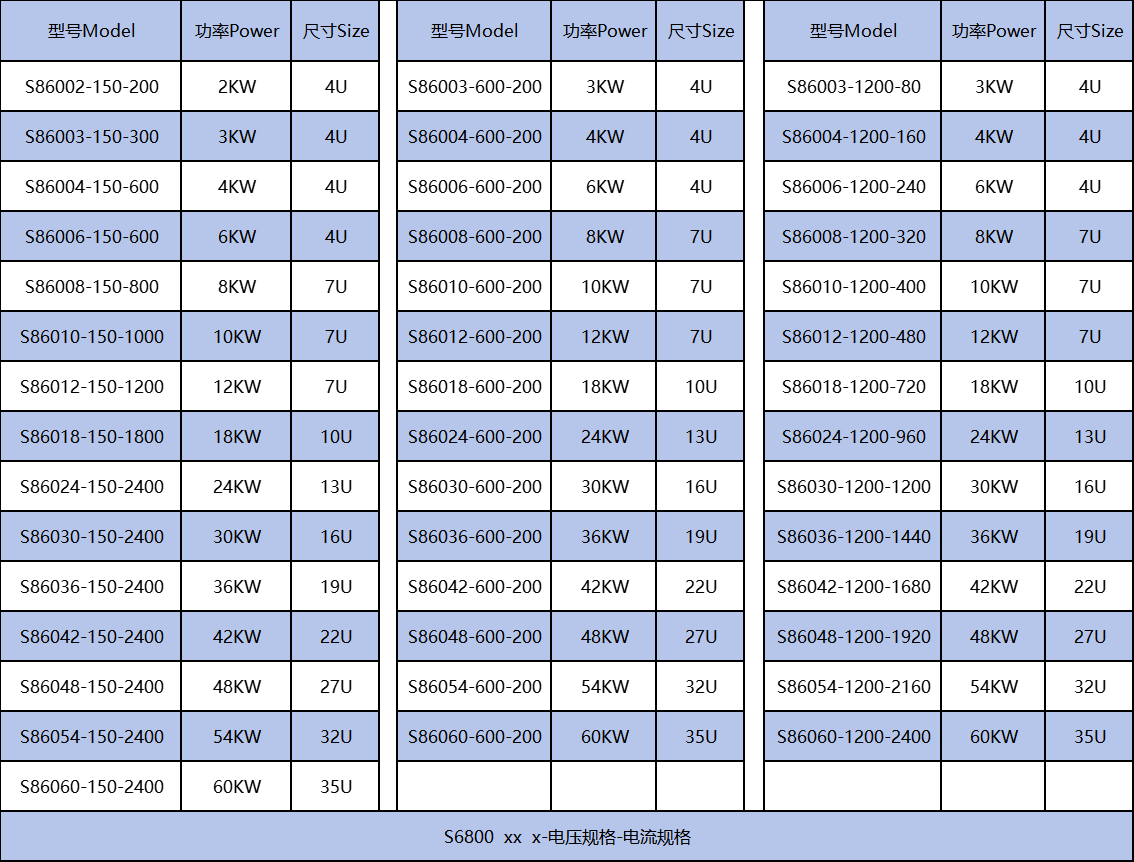

●规格型号Specification and model:
特注:其它定制型号请详询销售工程师。Special note: For other customized models, please refer to the sales engineer.
