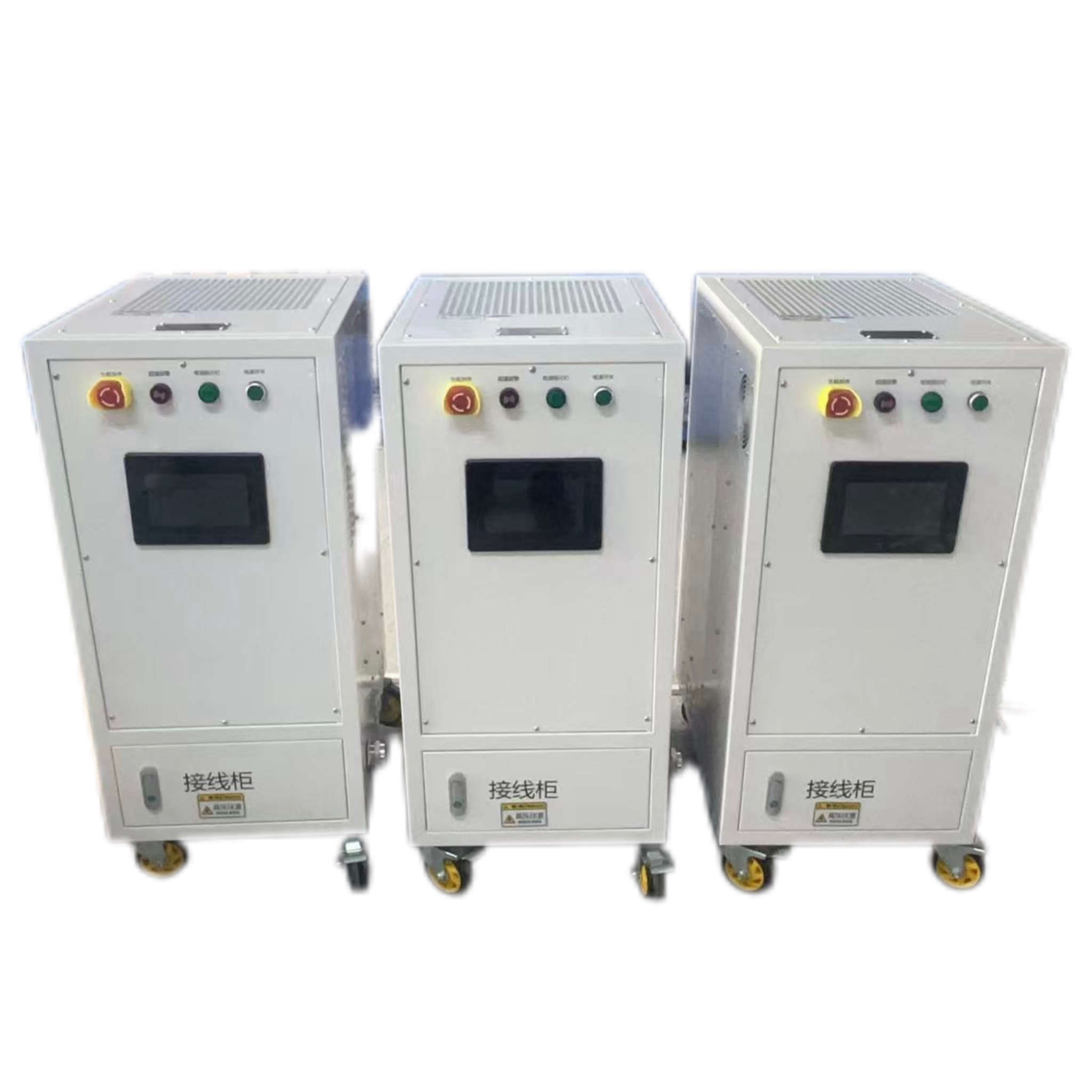

直流宽电压放电负载 (恒流、恒功率、恒阻)
  • 直流宽电压放电负载 (恒流、恒功率、恒阻)

直流宽电压放电负载 (恒流、恒功率、恒阻)

产品介绍
直流宽电压范围负载具备宽范围电压恒电流(CC)、恒功率(CP)、恒阻值(CR)模式加载,具备多种保护功能,内部使用自研发功率模块,功率密度高,耐热性强,强制风冷,保证负载能持续运行;支持突加/突卸,可长时间运行,耗能式工作模式,可满足低电压,大电流的产品测试及老化需求,广泛应用于直流充电桩、直流充电桩模块、直流电源、动力电池等产品的带载能力和放电测试。

产品特点 Features:

显示功能:带电压、电流、功率等电参数显示;Display function: display voltage, current, power and other electrical parameters;

保护功能:具备超温报警、超温保护、过压保护、过流保护功能,异常状态负载自动卸载,保证设备以及人身安全;Protection function: over-temperature alarm, over-temperature protection, over-voltage protection, over-current protection, automatic load unloading under abnormal conditions, to ensure equipment and personal safety;

核心功率模块:自主研发功率模块,自主生产,功率密度高,耐热性强,温漂低,无红热现象,使用寿命长;Core power module: self-developed power module, self-developed, high power density, strong heat resistance, low temperature drift, no red heat phenomenon, long service life;

控制方式可选:触摸屏控制;Optional control mode: touch screen control;

负载精度:±3%;Load accuracy: ± 3%;

散热方式:负载采用强制风冷散热,使用小型轴流风机,风量大,噪音小,保证负载能持续稳定运行;Heat dissipation mode: forced air cooling heat dissipation is adopted for load, and small axial flow fan is adopted, with large air volume and low noise, so as to ensure continuous and stable operation of load;

支持宽范围电压工作,CC、CP、CR三种模式可选; Supporting wide range voltage operation, CC, CP and CR modes are optional;

恒工作模式(CC、CP、CR),可根据实际输入电压自动调整负载,保证负载按照设定值稳定运行;Constant working mode (CC, CP, CR), which can automatically adjust the load according to the actual input voltage to ensure the load operates stably according to the set value.

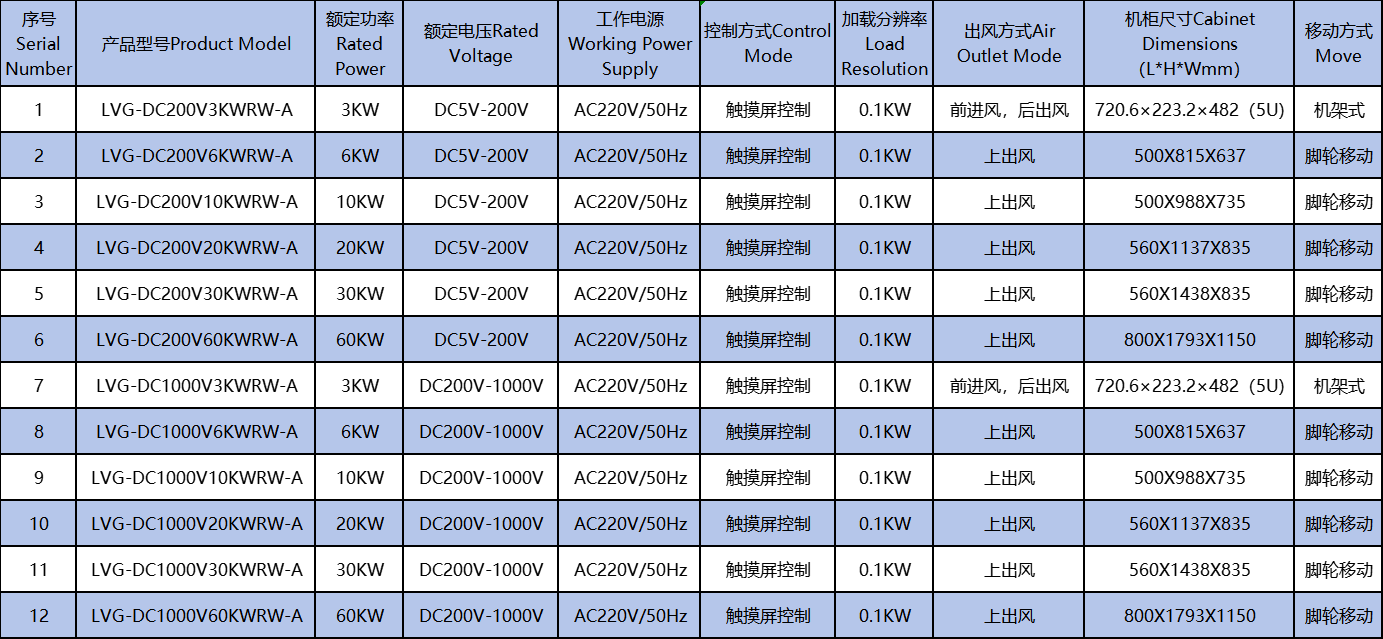

规格型号Specification and model:

                                  特注:其它定制型号请详询销售工程师。Special note: For other customized models, please refer to the sales engineer.
