制动电阻箱

技术参数 Technical Parameters：

▶功率范围 Power range: 1KW-200KW

▶电压范围 Voltage range: 0.5KV-2KV 可选

▶阻值范围 Resistance value range: 1R-10KR

▶耐压 Withstand voltage: 2.5KV-5KV/1min 50Hz 可选

▶IP 等级 IP Level: IP20

▶振动 Vibration: 0.5g

▶散热方式 Heat dissipation Method ：自然冷却 Natural cooling

▶额定温升 Rated Temperature rise:375℃

▶温漂 Temperature excursion: 80-400ppm/℃

▶载流体材料 Transfer fluid material: 0Cr25AL5/Ni80Cr20 可选 can choose

▶优势 Advantage:较高电压 Higher Voltage

▶劣势 Disadvantage:功率做不大，抗震性稍差 Low Power, and weak antiknock characteristic

▶包装 Packaging:纸盒封装 Carton packaging

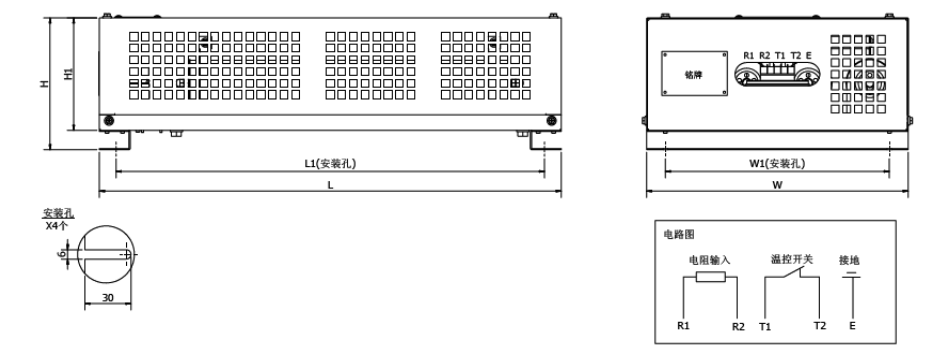

规格尺寸

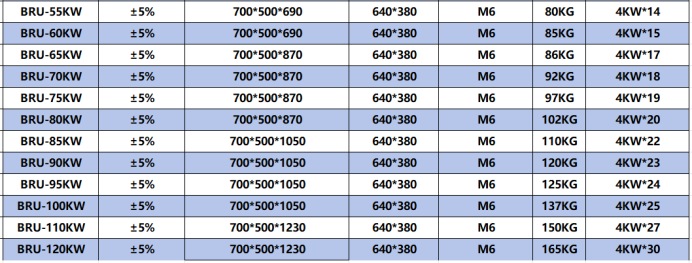

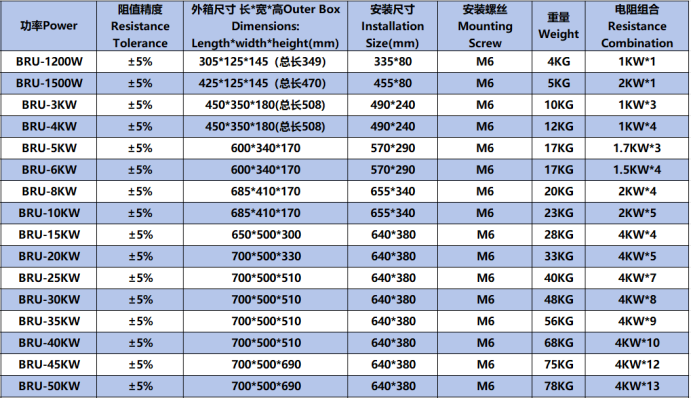

规格型号

                                                    特注：最终尺寸以销售工程师沟通结果为准。
