●产品特点 Features:
▶显示功能:带电压、电流、有功功率、无功功率、功率因数、频率、电量等电参数显示;Display function: display voltage, current, active power, reactive power, power factor, frequency, electric quantity and other electrical parameters;
▶保护功能:具备超温报警、超温保护、过压保护、过流保护功能,异常状态负载自动卸载,保证设备以及人身安全; Protection function: over-temperature alarm, over-temperature protection, over-voltage protection, over-current protection, automatic load unloading under abnormal conditions, to ensure equipment and personal safety;
▶核心功率模块:自主研发功率模块,自主生产,功率密度高,耐热性强,温漂低,无红热现象,使用寿命长;Core power module: self-developed power module, self-developed, high power density, strong heat resistance, low temperature drift, no red heat phenomenon, long service life;
▶控制方式可选:手动控制或者触摸屏控制;Optional control mode: manual control or touch screen control;
▶负载精度:±5%; Load accuracy: ± 5%;
▶功率因数可调:0.7-1;Power factor adjustable: 0.7-1;
▶散热方式:负载采用强制风冷散热,使用小型轴流风机,风量大,噪音小,保证负载能持续稳定运行;Heat dissipation mode: forced air cooling heat dissipation is adopted for load, and small axial flow fan is adopted, with large air volume and low noise, so as to ensure continuous and stable operation of load;
▶参考标准:依据GB/T 7260.3-2003《不间断电源设备(UPS第3部分:确定性能的方法和试验要求》标准设计;Reference standard: designed according to GB/T 7260.3-2003 Uninterruptible Power Supply Equipment - Part 3: Methods for Determining Performance and Test Requirements;

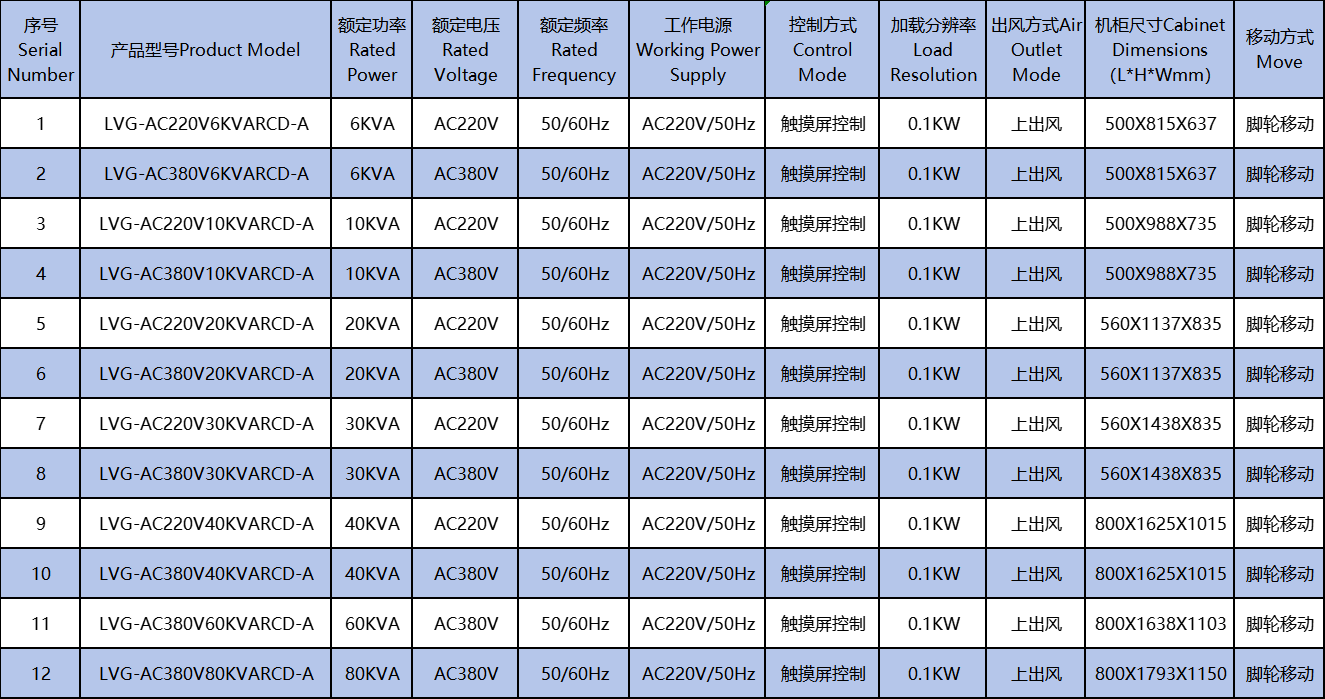

●规格型号Specification and model:
特注:其它定制型号请详询销售工程师。Special note: For other customized models, please refer to the sales engineer.
